Description
Our CCU1 is part of our die cast cab braille series in fishtail shape. Die cast parts are made from quality zinc, offer sharp character definition and are our top end option.
The part dimensions of the CCU1 are 1.955″ W x 1.358″ H. Standard mounting with studs and includes fasteners.
All SCS Cab braille is ANSI compliant with some versions that are CA compliant. Our standard font for designations is Helvetica.
Additional information
| Weight | 21 g |
|---|---|
| Dimensions | 1.955" x 1.358" x .070" |
| Designation | Star 1, ALARM, ESTOP, D/O, PHONE, D/C, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25 |
| Mounting | (3) Cast Studs, Adhesive |

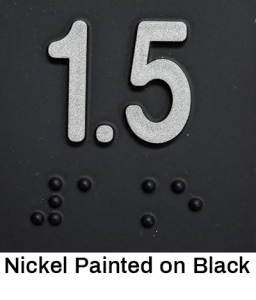

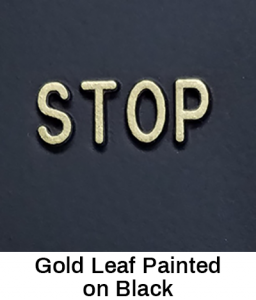

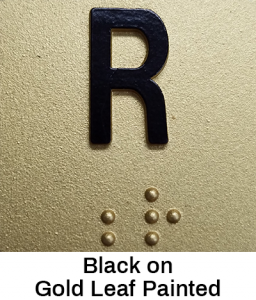

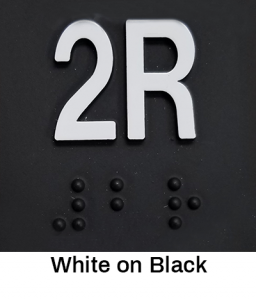

| Designation Color | Painted Black, Painted Gold Leaf, Painted Nickel, Painted White |
| Background Color | Painted Black, Painted Gold Leaf, Painted Nickel |
